D1401 SERIES
Product Description

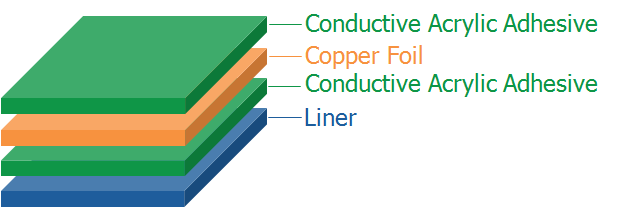

D1301 Series tape features a double coated conductive adhesive with a copper foil and conductive pressure sensitive acrylic adhesive. Products in the D1401 series are conductive through the thickness (Z-axis) and in the plane of the adhesive (XY-axis).
Feature
✔ Good Adhesion
✔ Excellent Conductivity
✔ Easy Die-Cut
✔ RoHS Compliant & Halogen Free
Applications
D1401 Series is typically used for applications requiring excellent electrical conductivity between the application substrates through the adhesive and shielding performance. Common applications include ESD grounding and EMI shielding in equipment, components, shielding rooms, etc.
Typical Properties
| Part Number | D1401-030 | D1401-050 | D1401-070 | D1401-100 | Test Method |
| Available Thickness (mm) | 0.030 | 0.050 | 0.07 | 0.100 | ASTM D3652 |
| Type of backing | Copper Foil | – | |||
| Type of adhesive (optional) | Conductive Acrylic-based | – | |||
| 1800 Peel to Steel (gf/inch @20min RT) | 1000 | 1200 | 1200 | 1600 | ASTM D3330 |
| Volume Resistance (Ω/inch2) | 0.02 | 0.05 | 0.05 | 0.05 | MIL-G-83528 |
| Shielding Effectiveness
@100MHz – 3GHz (dB) |
≥80 | ASTM D4935 | |||
| Operating Temperature (°C) | -20～85 | – | |||
| Standard Size (mm x m) | 1000*50 | – | |||
